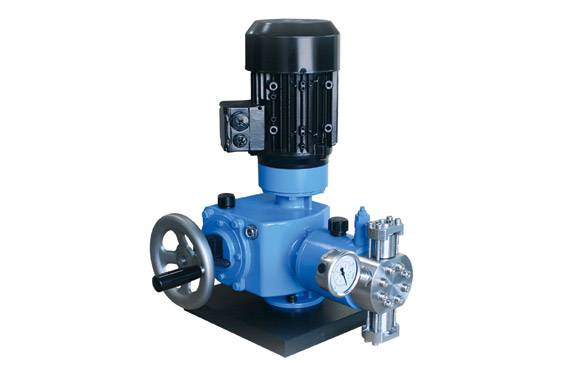

Sera process pumps of type are leakage free, oscillating displacement pumps for the volumetric dosing up to 81 l/h and pressures up to max. 300 bar - depending on the flow rate.

Advantages:

• Wide range of applications thanks to a performance between 4,9 l/h and 1650 l/h with counter pressures up to 300 bar.
• Exact flow respectively dosing rates by variable eccentric drives with a harmonic motion sequence.
• High reliability thanks to high-quality technical material, hydraulically driven multi-layer.
• Display of the membrane through an integrated diaphragm monitoring (visually standard/ electrically optional).
• Safe against overpressure by an internal pressure relief valve.
• Wide field of applications thanks to extensive accessories as well as an optional design for explosion-proof applications respectively in accordance with API Standard 674/675.
• Efficient drives of IE2 (for drives from 0,75kW) accord. EuP-guidline as standard.
• Optimum customer specific design for almost any application thanks to a wide range of standardized modules.
• Leakage free dosing and thereby a maximum security for productions environment.

Field of application:

• Chemical industry - Used for high-pressure processes
• Power plants - The pumps of the series 5 ensure a reliable boiler water conditioning
• Petrochemical industry - Feeding of different chemical & Security technology at the highest level
• Oil industry - Adding of liquid chemicals and achieving more efficiency and safety for our customer
